AZ-P1 Optics

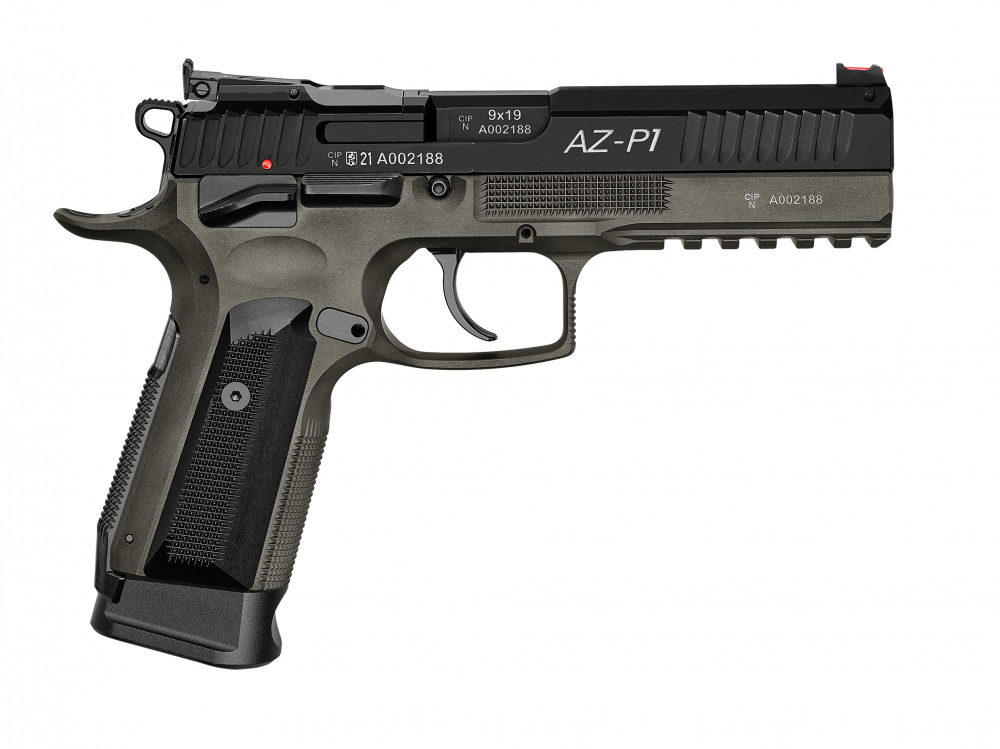

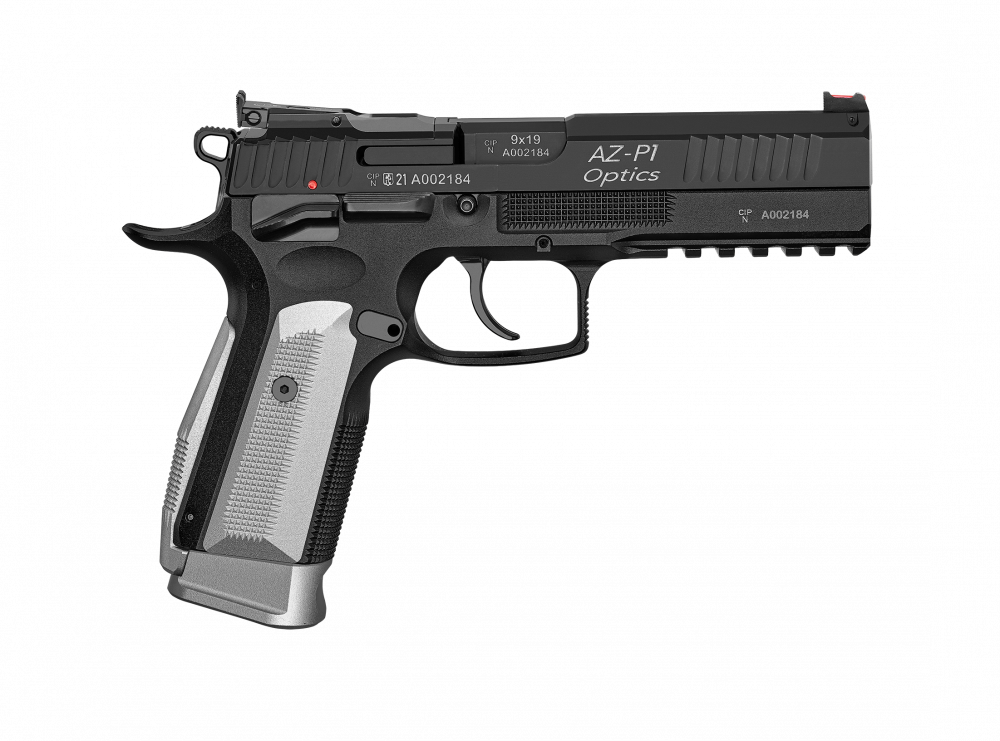

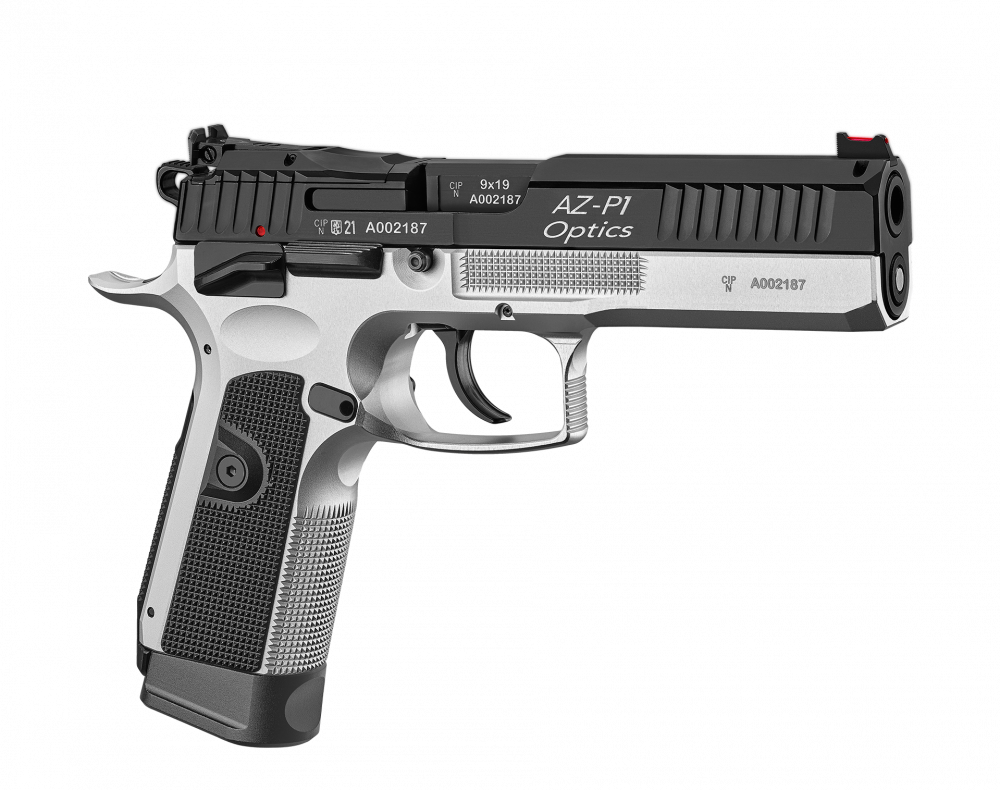

The AZ-P1 is a semi-automatic sport pistol with a combined single action/double action trigger mechanism (SA/DA) and locked breech (locking is realised via the barrel to the ejection port).
-this AZ-P1 Pistol meets the requirements of the IPSC and is approved to the production category.
Manual download
- modified ergonomics of the frame
- new type of the checkering on the frame and grips for a better grip
- high modularity, new type of the backstraps and grips
- dual action triger mechanism- SA/DA with short reset
- slide locks via the barrel to the ejection port
- frame with a mounting rail to attache accessories or withour rail
- ambidextrous controls
- easy disassembly and reassembly of the pistol
- last round fired signalization- the slide stays open
- improved ergonomics of the frame, new checkering and grooving for a firm grip
- sport front sight- Zendl with fibre optics
- sport rear sight- Zendl- adjustable for windage and elevation and with possibility to mount optics or mounting base for optics
- high-quality double stack magazine Mec-Gar/S.F. Meccanica for 17 rounds
- massive all metal construction, steel and aluminium alloy. Both machined
- high quality bull barrel with surface finish ARCOR as the rest of the steel parts
- rear and front slide serrations
- large ejection port for perfect ejection and easier checking of the chamber
- extractor serves as a loaded chamber indicator
- ergonomics serrations on the hammer for better manipulation
- takedown pin stays in the frame after disassembly
- magazine catch is reversible
- large and contoured beavertail for a good grip as high as possible in relation to the bore axis
- recess in the frame serves as a finger rest and support while shooting
- tuned shape of the magazine plate
- large spacious trigger guard with checkering at the front
- excellent accuracy
- high durability
- maximum reliability
- adjustable trigger mechanism - trigger pull lenght and reset
- ambidextrous and large safeties serving as a support while shooting
- checkering on the frame for a firm grip
- roughened backstraps and grips for a firm grip
- holes in the back of the magazine, that shows state of the magazine- for 5, 10, 15 and 17 rounds
